Takeway T1 7075-T6 Alloy Clampod T-PH02 Phone Holder
Akicom Takeway T1 7075-T6 Aerospace Aluminum Alloy Compact Size Light Weight Clampod T-PH02 Visual Ergonomic Design 45 Degree View Angle Smartphone Holder Phone Cradle Alloy Aluminum Base
Akicom Takeway T1 7075-T6 Aerospace Aluminum Alloy Compact Size Light
Weight Clampod 1/4 in Screw Mount up to 6.6 lb DSLR Camera LED Video
Light Panel Microphone Light Back Ground Stand Cylinder Rod Stabilizer
Shoulder Mount RIG Bed Pole Bar
Akicom Takeway T1 7075-T6
Aerospace Aluminum Alloy Compact Size Light Weight Clampod is here to
save you from the tiredness resulting from extended hours of holding
cameras for videos and images. Takeway T1 7075-T6 Aerospace Aluminum
Alloy Clampod is perfect to record videos, capture images and continuous
shooting schedules.
Feature-packed
Made from 7075-T6
Aerospace-grade Aluminum Alloy, the Akicom Takeway T1 7075-T6 Aerospace
Aluminum Alloy Clampod renders impressive tensile strength. It is
lightweight, compact in size, and portable with high clamping power.
Featuring great load capacity, up to 88 lb / 40 kg, Akicom Takeway T1
Aerospace Aluminum Alloy Clampod lets you enjoy ease of operation and
better ground stability.
Lightweight Construction
The Akicom
Takeway T1 7075-T6 Aerospace Aluminum Alloy Clampod comes with an
Aerospace-grade Aluminum Alloy Ballhead and a quick release plate for
easy mounting of DSLRs. The ballhead can be rotated in 360 degrees and
lets you install heavy ballheads for enhanced weight-load capacity.
Compatibility
It
carries equipment up to 6.6 lb / 3 kg such as DSLR Cameras w/ Telephoto
Lens. The cubic tips enable easy rotation in X side, smooth side, and
cubic sides. The ergonomic plastic disc handle and a precise screw
ensure easy and quick clamping–even in standing position. This Akicom
Takeway T1 7075-T6 Aerospace Aluminum Alloy Clampod can be connected to
the inner jaw and a cylinder rod which has a diameter between 16 mm and
30 mm.
Features
* Aerospace-grade Aluminum Alloy
7075-T6 Aerospace-grade Aluminum Alloy - T6 Temper 7075 has ultimate tensile strength
The
main body is made of the 7075-T6 aerospace-grade aluminum alloy, which
is light weight, compact in size and portable while still maintains a
great clamping power. Its great load capacity increases its convenience
for operation. It is easy to be fixed and maintain stability.
Max. load capacity of the clamp is up to 88 lb / 40 kg.
* Aerospace-grade Aluminum Alloy Ballhead
The
clamp is equipped with a light weight ballhead and a quick release
plate for most DSLRs. The maximum load capacity of the ballhead is 6.6
lb / 3 kg.
Quick release plate allows you to mount 3C product
quickly. The ballhead rotates in 360 degrees. You can also install other
heavy ballheads for a higher weight load capacity.
It holds products
that weight less than 6.6 lb / 3 kg, such as DSLR, Camera, LED Video
Light Panel, best for use with Microphone Stand, Light Stand, Back
Ground Stand, Cylinder Rod, Stabilizer, Shoulder Mount RIG
* Multi shape Jaws for use with different Materials
The
cubic tip offers a rotatable tip for three different sides: X side,
smooth side, and cubic. Select different side for different surfaces for
utmost security and stability.
The cubic tips with three kinds of tread make the clamp steady and easy to be fixed.
* Handle
An
ergonomic design handle made of soft plastic is easy to use. With a
precise adjustment, you can screw in the clamp easily and quickly.
* Compact Size Removable Stand
A removable base gives support when the clamp is used in standing position.
* Inner Jaw to fasten up w/ cylinder pole
Most
cylinders rod can be clamped with the inner jaw. Takeway T1 can clamp
on cylinder rod with diameter between 0.6 ~ 1.18 in (16mm and 30mm.)
* Takeway Clampod Smartphone Holder
A
smartphone holder is compatible with iPhone 6 5 4 3GS, Galaxy S5 S4 S3
S2 S1, Galaxy Note 4 3 2 1, HTC ONE, etc (2 ~ 3.34 in, 5 ~ 8.5cm,
without case).
Specifications
Model number: T1
Product Size:
Extended: 5 x 3.5 x 6.5 in (12.5 cm (L) x 9 cm (W) x 16.4 cm (H).)
Folded: 6.8 x 1.2 x 6 in (17.3 cm (L) x 3.1 cm (W) x 15cm (H))
Product Weight: 7 oz / 200g (including ballhead)
Materials: 7075-T6 Aerospace-grade aluminum alloy, nylon.
Connection Point: 1/4”-20 standard tripod mount
Clamping functions:
Cylinder Diameter: 0.6 ~ 1.18 in (16 ~ 30 mm)
Thickness: 0.04 ~ 2 in (1~ 50 mm)
Max Weight Load (Ball head): 6.6 lb / 3 kg
Main structure (cantilever clamp): 88 lb / 40 kg
The maximum load capacity of Takeway T1 clamp body is 88 lb / 40 kg
(including ballhead), but the maximum load capacity of the ballhead
itself depends on its own design.
Package Contents:
Clamp body x 1, Ballhead x 1, Smartphone holder x 1, inner jaw x1, Pouch x1, Base x1, Stand x1.

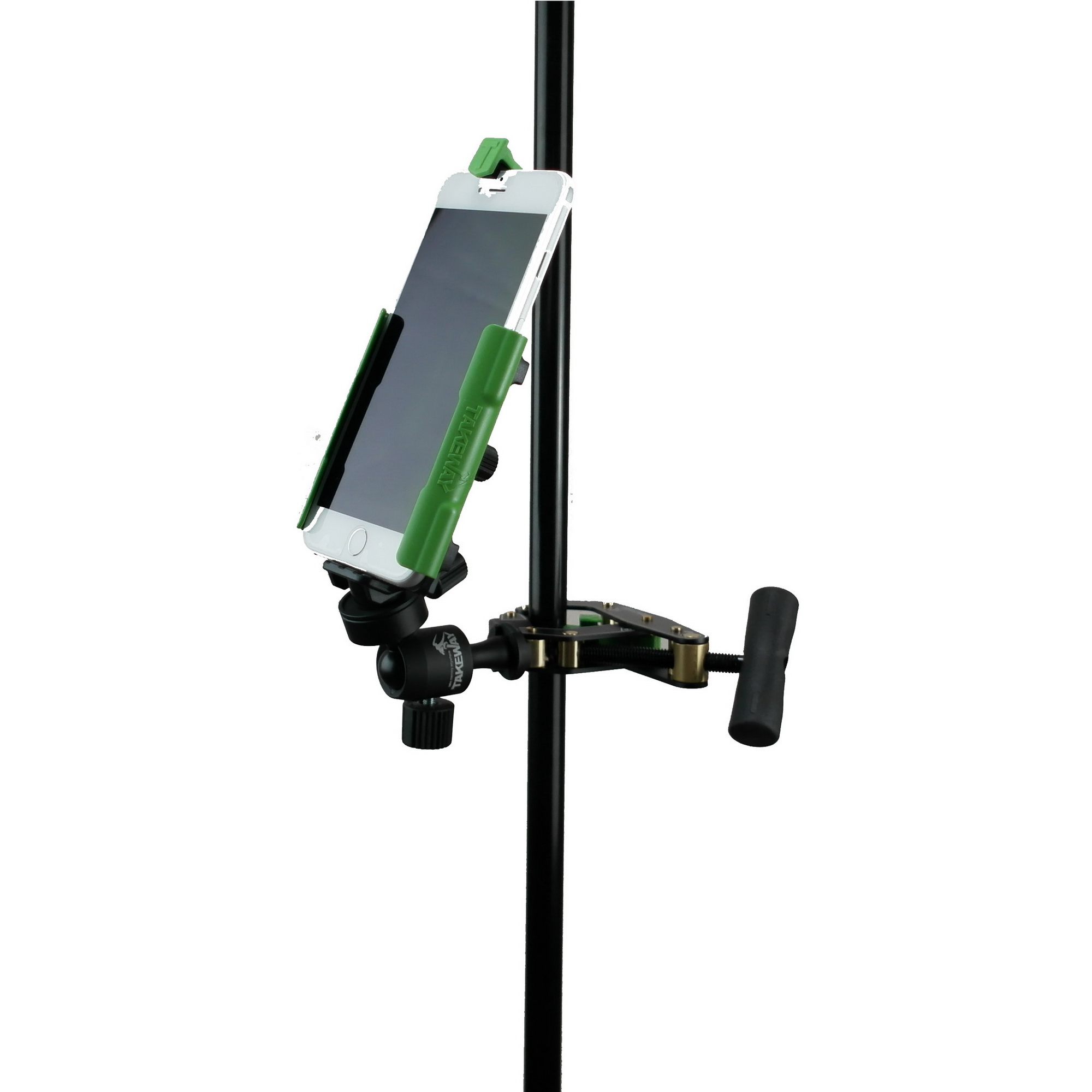

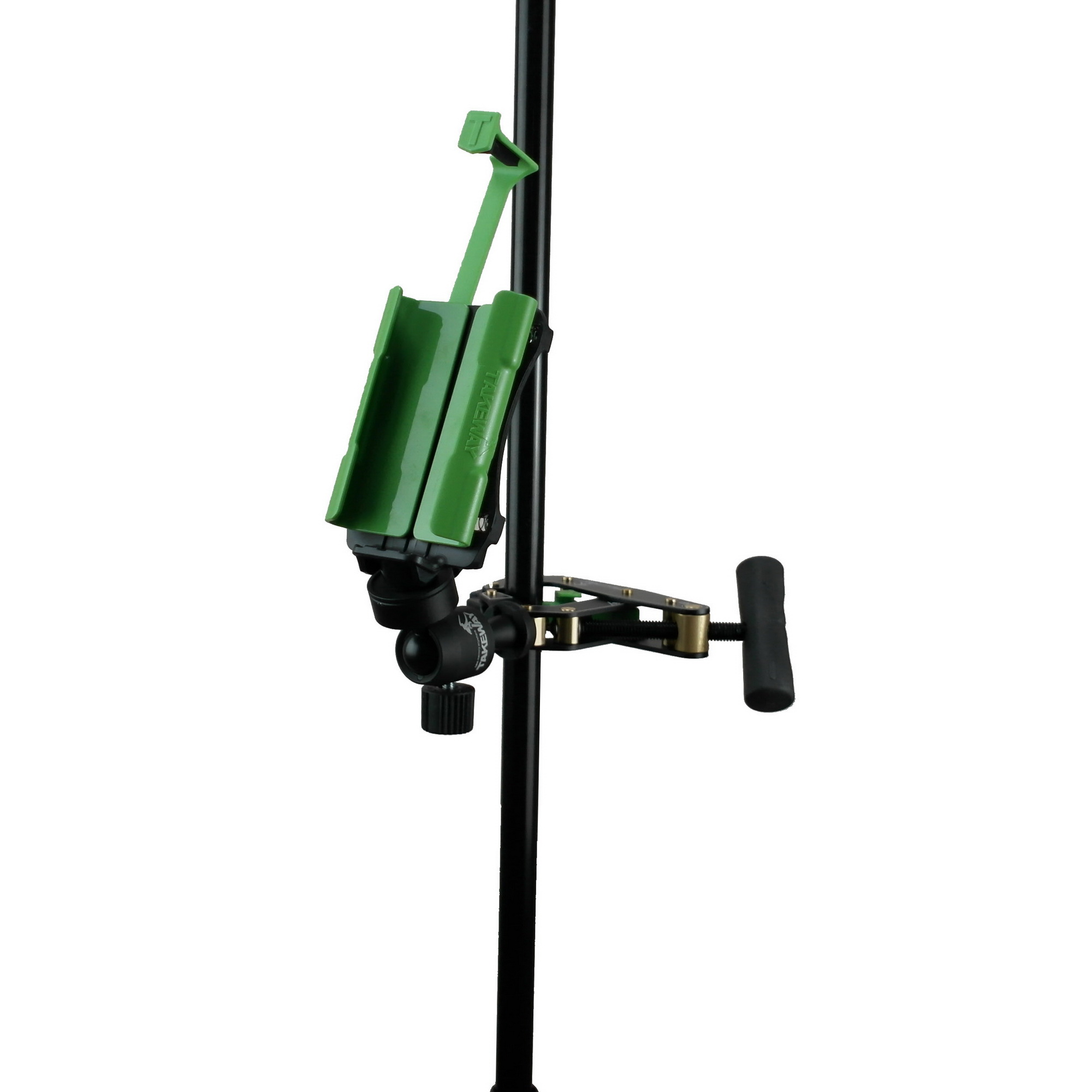

Akicom Takeway T-PH02 Visual Ergonomic Design 45 Degree View Angle
Smartphone Holder Phone Cradle Alloy Aluminum Base for Takeway T1
Clampod
Smartphones can be vulnerable but we ensure you give them
a rugged and stylish cradle. Practical to the core, the Takeway T–PH02
Smartphone Holder Phone Cradle lets you carry your smartphone with ease

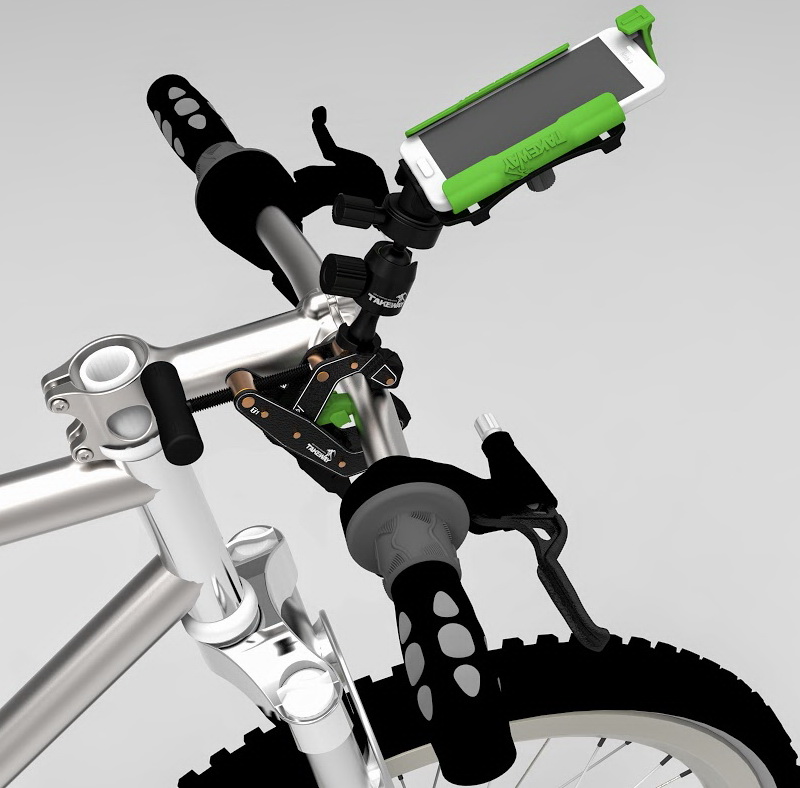

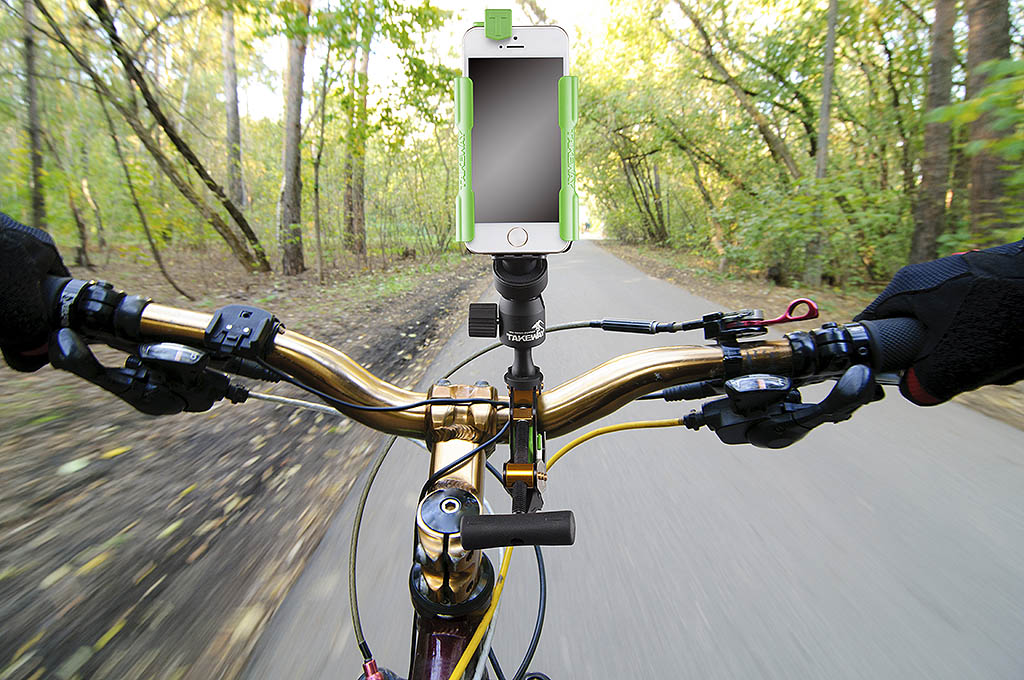

when you are on the move. Whether you are using on Mountain Bike,
Bicycle, Motorcycle Motorbike or Dirt Bike, it is special designed to
endure sporting activities! Optimized for everyday usage, the Takeway
T–PH02 smartphone holder securely takes care of your smartphone.
Patented design, the Takeway T-PH02 Smartphone Holder keeps your
smartphone from scratches at bay. Its visual ergonomic design 45 degree
view angle allow viewing easily when in motion. The resilient
composition means it is capable of outstanding the harshest conditions.
The Takeway T–PH02 smartphone holder is highly compatible with nearly
all the contemporary 4 in to 5.7 in screen size smartphones. With the
phone secured in the holder, you can easily make calls or navigate via
GPS!
Takeway T-PH02 is Vibration and Shaker Tested!!
Features:
* 45 Degree View Angle
Visual
Ergonomic Design allow use to view in its effortless view angle,
provide utmost clarity and convenience when operate in motion
* Rugged constructed and Easy Adjustment
Secure on all 4 sides, easily adjust to fit in most common size of smartphone in the market
* Metal Base Vibration and Shaker Tested
Tested
on Vibration and Shaker Testing Machine, provide secure, stable when
operate under severe condition, indoor or outdoor, the metal base
provide best stability when locking on Takeway T1 Clampod.
Specification:
Model number: T-PH02
Size: 6x3x2 in (15(L)x6.5(W)x5.4(H)cm)
Weight: 3 oz / 83g
Materials: Plastic, Aluminum Alloy
Available size: Maximum size 6x4x1 in (15.8(L) x9(W) x1.3(H)cm, suitable for smartphone with screen size from 4 in to 5.7 in)
Capacity: 7 oz / 200g
N.W. 3 oz / 83g
G.W. 4 oz / 122g
Product components: T-PH02 x1, User guide x1
